DECK CONCEPT RENDER

Simple concept renders produced for Ellerslie Playcentre in Auckland (2018).

The brief was to provide images which would help members to visualise different deck style options, and how these options would interact within the existing structures while still providing clear sight-lines to various play areas. Images generated from a 3D model created in Sketchup and integrated with simple textures and detail in Photoshop.

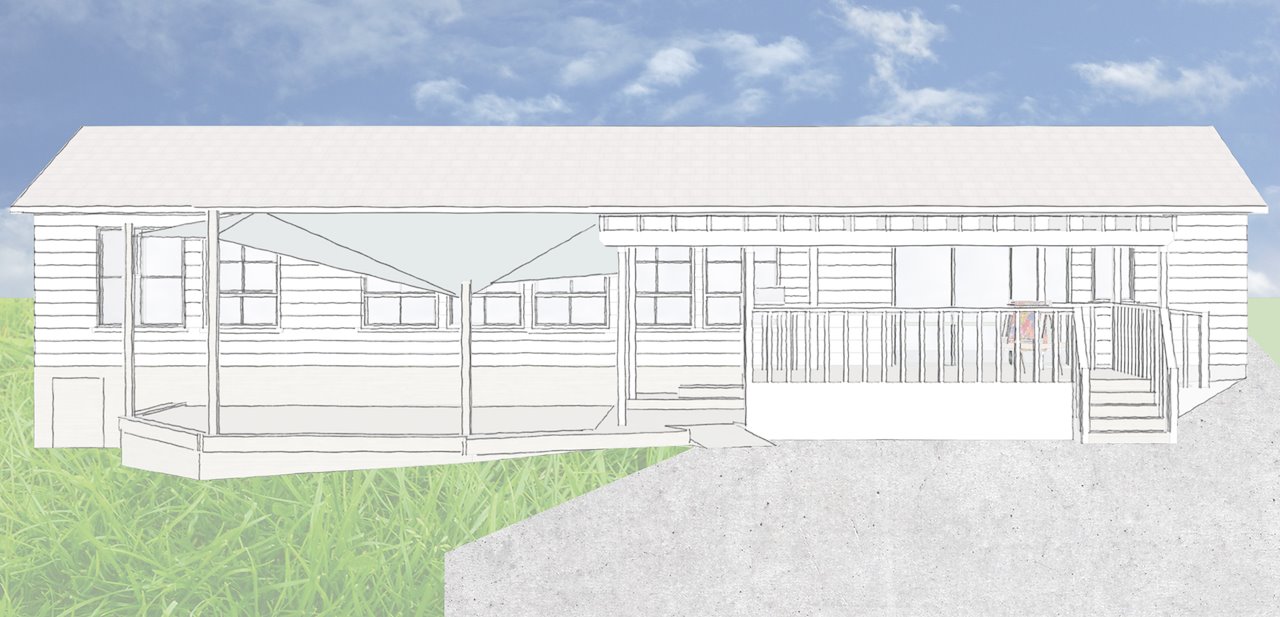

Elevation with new deck structure to the right

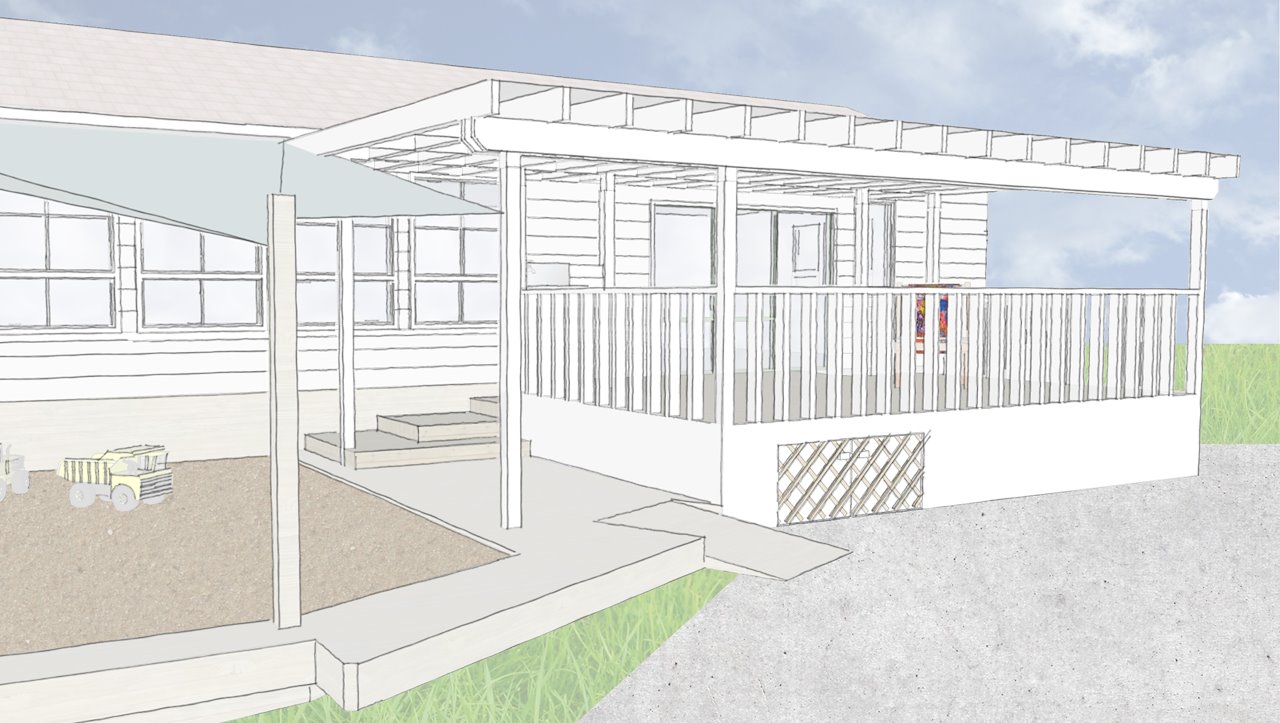

View of deck option without stairs onto front concreted area

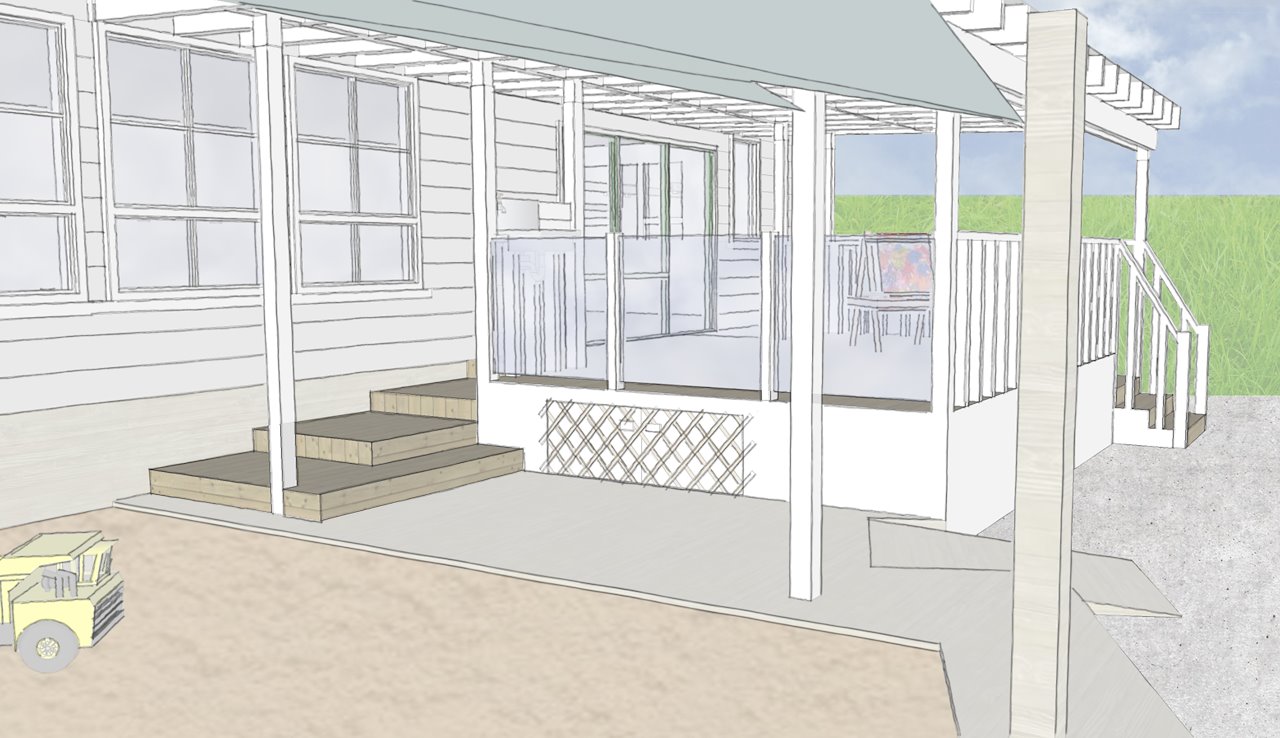

View from sandpit towards deck space

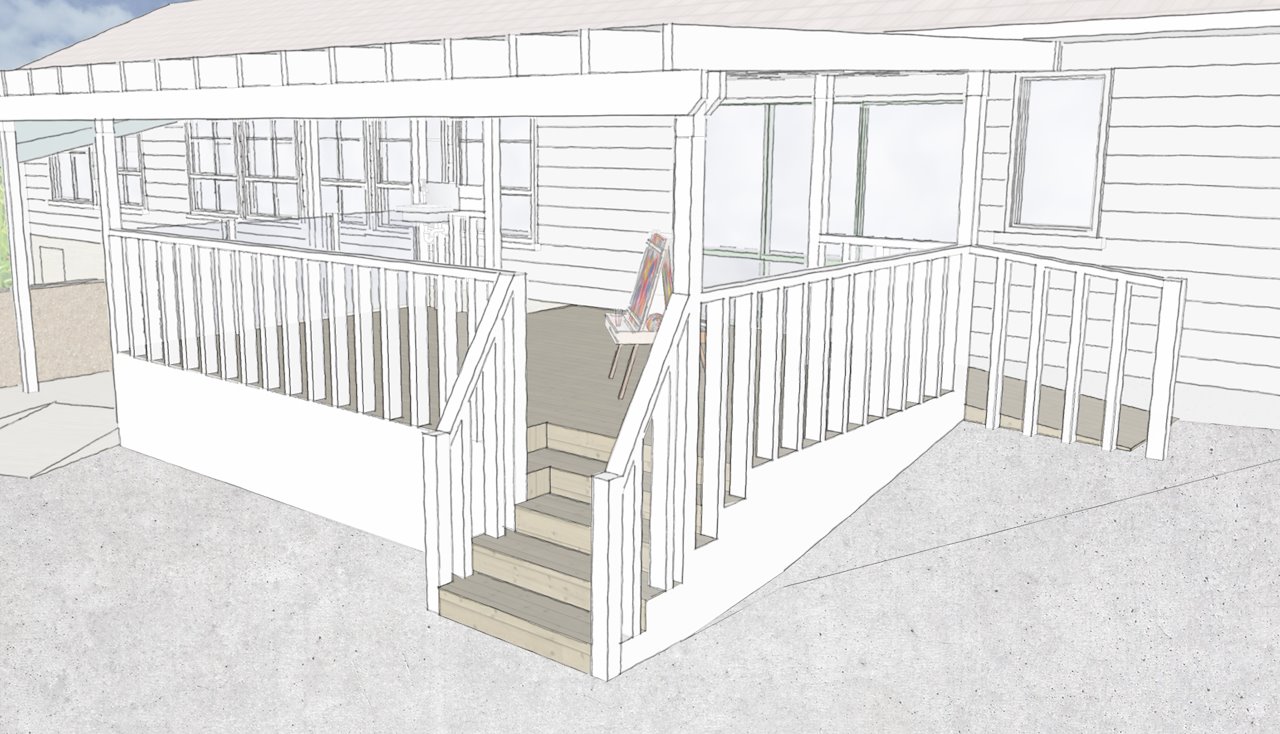

View showing new stairs onto concreted area

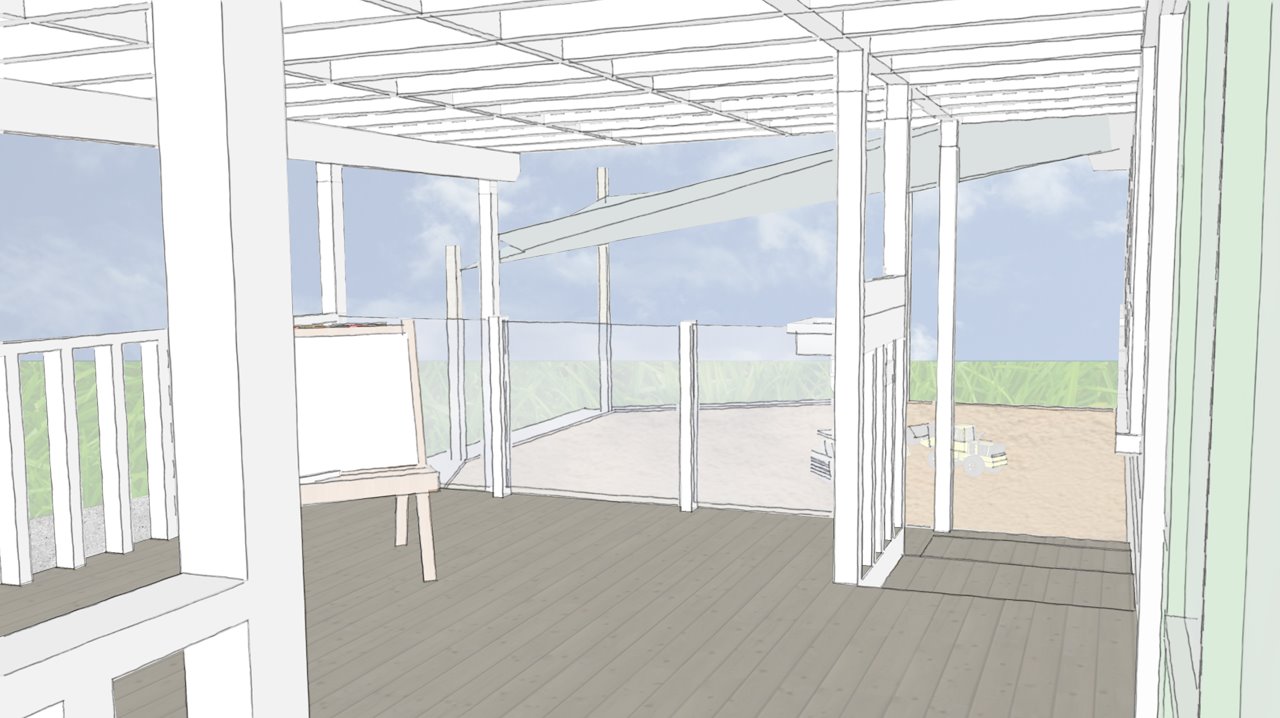

View from deck towards sandpit, incorporating transparent panels in the railings to allow clearer sight-lines

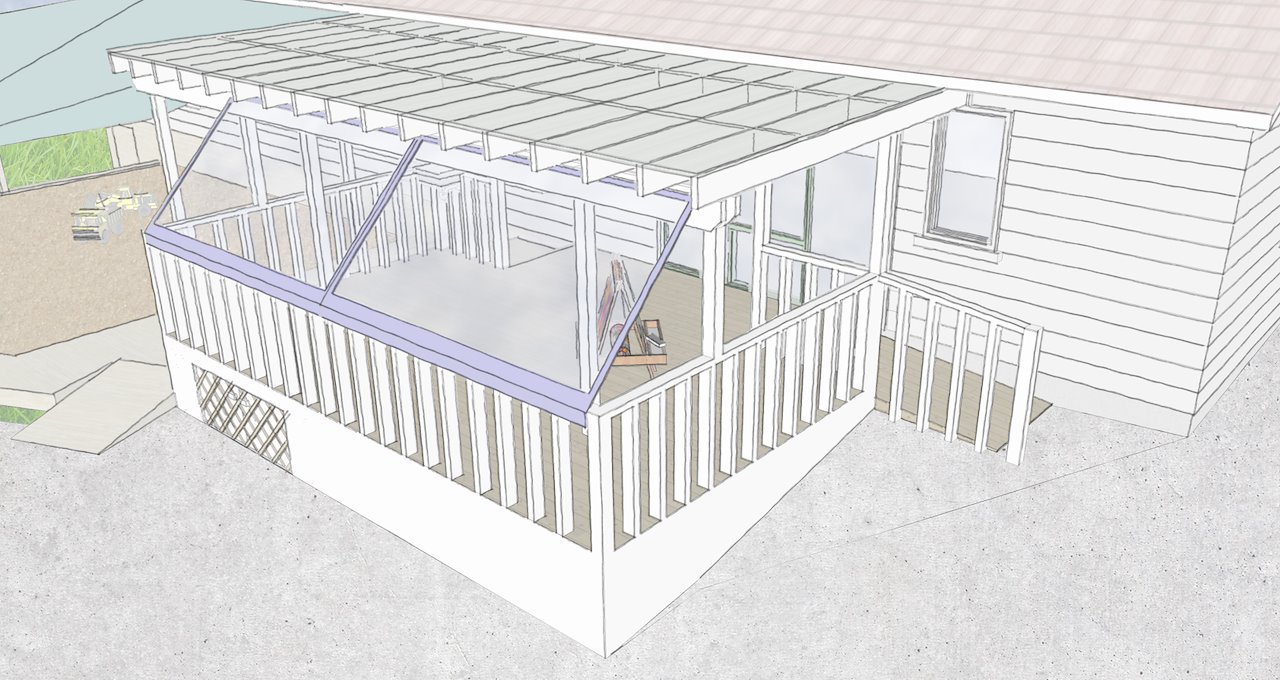

View looking at using existing roll-up panels as weather protection, rather than extending the roof
